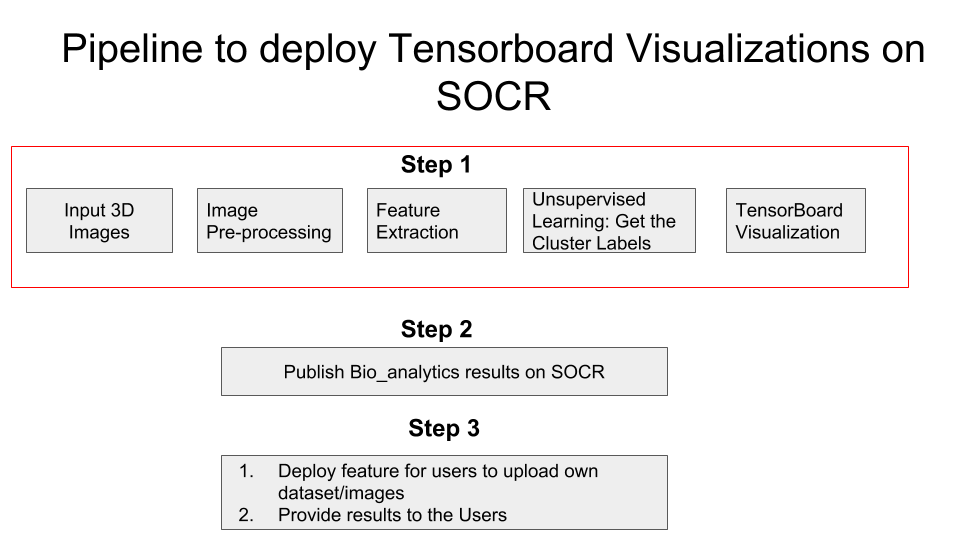

- Project Pipeline
- Unsupervised Learning
- TensorBoard
- Code
- Results
- SOCR

Chiranjeevi Vegi, Hanbo Sun, Tuo Wang, Chao Gao, Alex Kalinin, Lu Zhao, Arthur Toga, Debra Barton, Ivo Dinov and the CSCD Team

This CSCD HTML5 resource demonstrates:

- t-distributed stochastic neighbor embedding (t-SNE) statistical method for manifold dimension reduction,
- The TensorBoard machine learning platform, and
- Hands-on Big Data Analytics using the UK Biobank data.

Clustering: the example #1 (and most probably the first one) a machine learning expert will give you if you ask "What are examples of unsupervised learning?".Clustering is also a closet of shame of machine learning as a scientific domain. Nobody really knows what a good clustering is. There's no algorithmic way to optimally decide on the good initialization of clustering algorithms, the optimal number of clusters, the metric to compare the similarity/dissimilarity of points within one cluster. Only heuristics and advice of kind "try this/try that".

Classification/regression/sequence modeling/reinforcement learning are all living a boom of new discoveries and new problems being solved. Clustering desperately got stick in the 1980's.

source: Andriy Burkov on LinkedinIn this article, we suggest TensorBoard interactive visualization as an additional tool to help visualize higher dimensional data and understand unsupervised models and results

With data increasing at an exponential rate, the datasets have million observations and attributes/features. One might argue, more the data the merrier. But this is not the case always. Datasets with high dimensions/features are subjected to what is colloquially known as the curse of dimensionality. Medical images generate thousands of features and are subjected to curse of dimensionality. This problem pushed researchers to explore dimensionality reduction procedures such as Principal Component Analysis (PCA), t-distributed stochastic neighbor embedding (t-SNE), Linear discriminant analysis (LDA) etc. Here, we demonstrate -SNE.

The math behind some of these dimensionality reduction methods is elaborately explained in the Data Science and Predictive Analytics Book (DSPA), this article , and more intuitively in this video.

Now that we established some understanding of visualizing higher dimensional data. Let's understand how one could leverage this to understand unsupervised model performance.

Multi-source, heterogeneous and multifaceted data for 11,000 participants were acquired for a large scale study. Imaging, genetics, clinical assessments and demographic information was recorded at multiple times. The data was preprocessed, derived neuroimaging morphometry measures were computed, and a single computable data object was created by harmonizing and aggregating all the available information. The final sample size was reduced to 9,914, as some cases were removed due to preprocessing errors, extreme missingness, or inconsistencies.

The goal of the study was to examine thousands of data elements (3,300), predict specific clinical outcomes, determine the most salient features associated with computable clinical phenotypes, and interpret the joint data holistically, in a lower dimensional space

Description: For each participant with a structural MRI brain scan, we derived a set of 3,000 neuroimaging biomarkerss. These represent a quantitative signature vector of the 3D stereotactic brain anatomy. Additionally, each participant had clinical assessment, demographic, and phenotypic data, which was harmonized and integrated with the derived neuroimaging biomarkers.

Number of Observations: 9,914

Number of features: 3,297

After all the data pre-processing and feature extraction, it's time to find hidden patterns in the data. Since we do not have ground truth labels, unsupervised learning techinques are used. We would not go in depth on these machine learning models in this article.

Before training an unsupervised model, we need to note that data has 3,297 features which can results in poor performance of our model. So the first step employed is dimensionality reduction using PCA to get a minimum number of features which can explain 80% of the variance. As seen in the graph below, approximately 300 features can help explain 80% variance in the data. Hence, our final data that is fed into machine learning model has 9,914 Observations and 300 Features/attributes.

** Model Performance ** To evaluate model performance
in absence of information about ground truth labels, very few
metrics are available to evaluate the model. These metrics are:

**Silhouette Coefficient****Calinski-Harabaz Index**

Interpretation: The silhouette value is a measure of how similar an object is to its own cluster (cohesion) compared to other clusters (separation).The score is bounded between -1 for incorrect clustering and +1 for highly dense clustering. Scores around zero indicate overlapping clusters. The score is higher when clusters are dense and well separated, which relates to a standard concept of a cluster.

Interpretation: The score is higher when clusters are dense and well separated, which relates to a standard concept of a cluster. The score is fast to compute

**Note:** Since the focus of the article is on
understanding the results of unsupervised learning using TensorBoard
visualizations, we would not do much in terms of hyperparameter
tuning of machine learning models other than K-Means++.

**K-Means++**- Affinity Propagation
- Spectral Clustering
- Agglomerative Clustering
- DBSCAN

The parameter of interest in this model is choosing optimal 'K' i.e., Number of Clusters. Elbow graph as shown below is the popular method to estimate the value of 'K'

We are looking for a sharp bend in the plot of inertia vs. number of clusters where beyond that point change in inertia is very less and that point of the bend can be considered as optimal cluster number. In this case, we do not see such sharp bend. However, we see that after 3 clusters the variation in inertia is less/decreasing gradually. Thus, we will fit our data to 3 clusters.

As seen from the above label distribution plot, 85% of the
observations are in clusters 1 and 3 with **Silhouette
Coefficient of 0.091 ** . Based on this, it can be infered
that model performed poorly and their is overlap between the
clusters. This can be seen using t-sne generated in python. Later
we will use TensorBoard to generate 3D visualization of t-SNE

**Result: Each observation is a cluster **

**Result: Silhouette Coefficient =
-0.010253807701991864 **

**Result: Silhouette Coefficient = 0.0741 **

**Result: All data observations in one cluster**

Though we a metric to evaluate different model performance, without ground truth label we cannot ascertain that a particular model is performing well. Thus, one way to solve this is visualization of the underlying clusters formed by each model. Such visualizations can put our doubts at ease and also provide meaningful insights on model performance and lot being limited by Silhouette Coefficient

The computations you'll use TensorFlow for - like training a massive deep neural network - can be complex and confusing. To make it easier to understand, debug, and optimize TensorFlow programs, we've included a suite of visualization tools called TensorBoard. You can use TensorBoard to visualize your TensorFlow graph, plot quantitative metrics about the execution of your graph, and show additional data like images that pass through it.

Out of vast majoirty of features TensorBoard offers we will use Embedding Projector. TensorBoard includes the Embedding Projector, a tool that lets you interactively visualize embeddings. This tool can read embeddings from your model and render them in two or three dimensions.

- Data panel on the top left, where you can choose the run, the embedding variable and data columns to color and label points by.
- Projections panel on the bottom left, where you can choose the type of projection.
- Inspector panel on the right side, where you can search for particular points and see a list of nearest neighbors.

The Embedding Projector provides three ways to reduce the dimensionality of a data set.

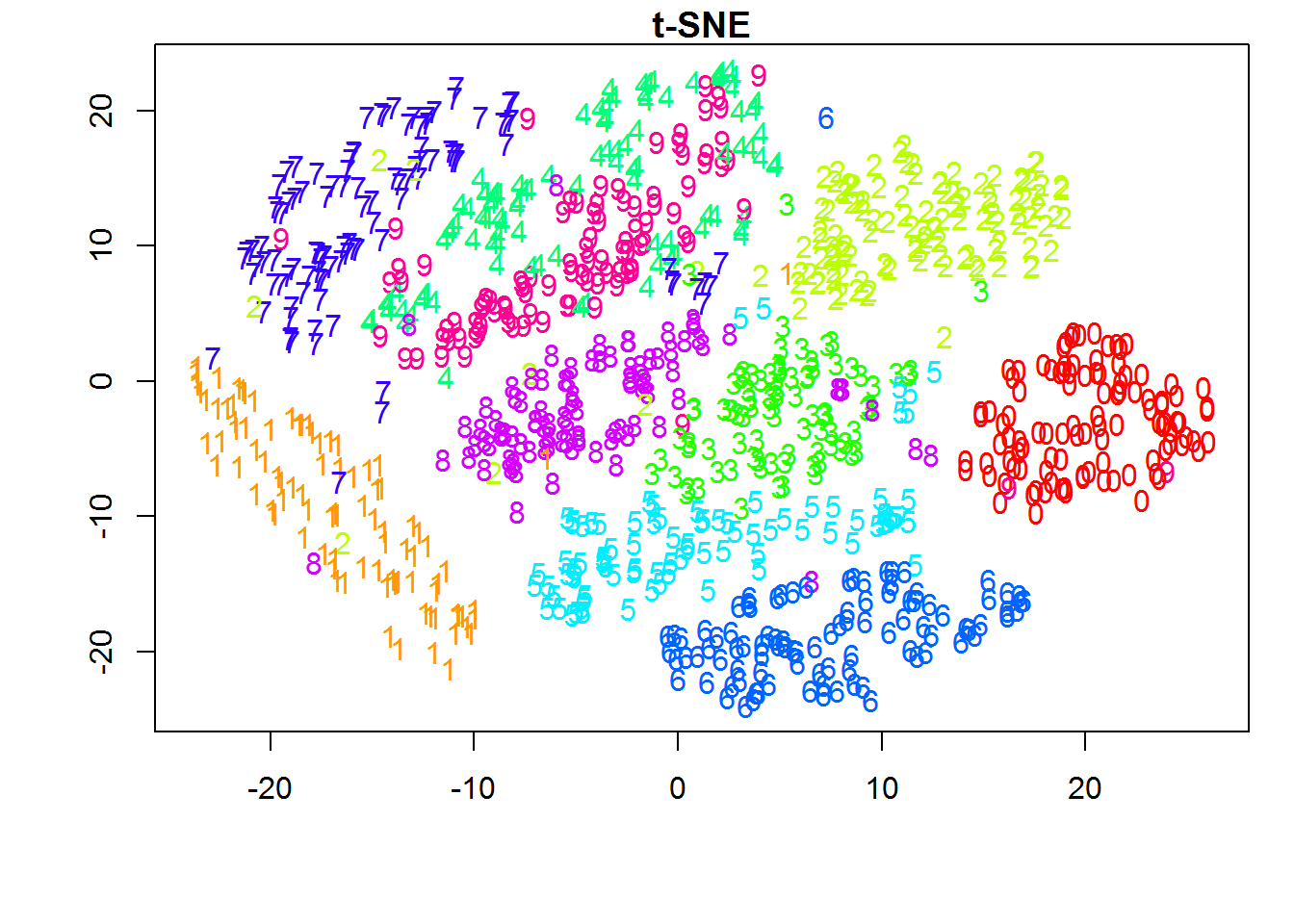

**t-SNE:**A nonlinear nondeterministic algorithm (T-distributed stochastic neighbor embedding) that tries to preserve local neighborhoods in the data, often at the expense of distorting global structure. You can choose whether to compute two- or three-dimensional projections.**PCA:**A linear deterministic algorithm (principal component analysis) that tries to capture as much of the data variability in as few dimensions as possible. PCA tends to highlight large-scale structure in the data, but can distort local neighborhoods. The Embedding Projector computes the top 10 principal components, from which you can choose two or three to view.**Custom:**A linear projection onto horizontal and vertical axes that you specify using labels in the data. You define the horizontal axis, for instance, by giving text patterns for "Left" and "Right". The Embedding Projector finds all points whose label matches the "Left" pattern and computes the centroid of that set; similarly for "Right". The line passing through these two centroids defines the horizontal axis. The vertical axis is likewise computed from the centroids for points matching the "Up" and "Down" text patterns

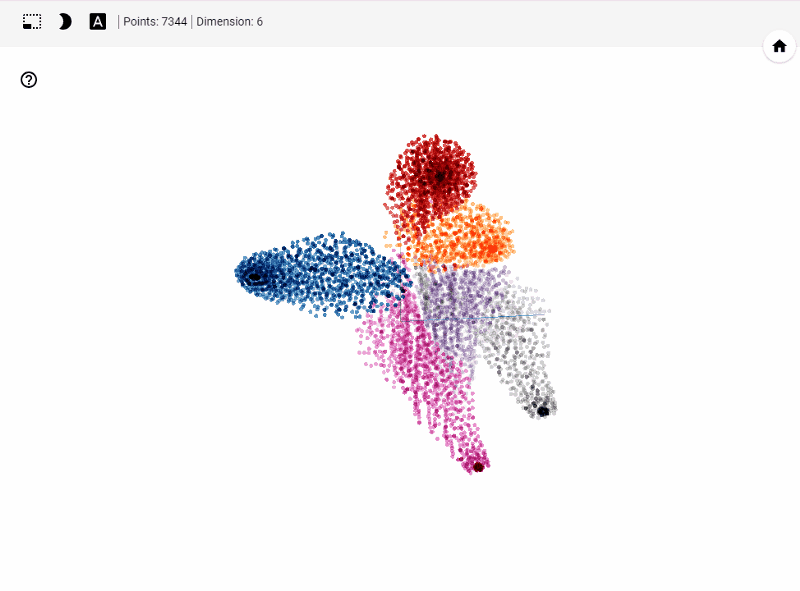

What does TensorBoard visualization look like?

Let's get started generating t-SNE visualization on tensorboard with our own data. Steps involved

**Required Libraries: **TensorFlow, Pandas, Numpy,
sklearn (PCA, StandardScaler). You can also create an environment
using the .yml file found here
here. To run the .yml, run the following command ** conda
env create -f filename.yml** in terminal(mac) or conda
prompt(windows)

Before jumping into code to visualize higher dimensional data

- Apply standard scaler and Create dummy variable for categorical data
- For better results with t-SNE, apply dimensionality reduction to reduce your data set to 50 features or PCA components that explain at least 80% of the variance in your data
- If your data is not labeled, predict clusters/labels using unsupervised learning methods. In fact, this visualization method helps immensely in understanding our clustering results.

Running the code below generates necessary files such as embeddings for data, metadata, checkpoints and TensorFlow variables that TensorBoard reads during startup

## Importing required Libraries import os import tensorflow as tf from tensorflow.contrib.tensorboard.plugins import projector import numpy as np import pandas as pd from sklearn.preprocessing import StandardScaler from sklearn.decomposition import PCA ## Get working directory PATH = os.getcwd() ## Path to save the embedding and checkpoints generated LOG_DIR = PATH + '/project-tensorboard/log-1/' ## Load data df = pd.read_csv("scaled_data.csv",index_col =0) ## Load the metadata file. Metadata consists your labels. This is optional. Metadata helps us visualize(color) different clusters that form t-SNE metadata = os.path.join(LOG_DIR, 'df_labels.tsv') # Generating PCA and pca = PCA(n_components=50, random_state = 123, svd_solver = 'auto' ) df_pca = pd.DataFrame(pca.fit_transform(df)) df_pca = df_pca.values ## TensorFlow Variable from data tf_data = tf.Variable(df_pca) ## Running TensorFlow Session with tf.Session() as sess: saver = tf.train.Saver([tf_data]) sess.run(tf_data.initializer) saver.save(sess, os.path.join(LOG_DIR, 'tf_data.ckpt')) config = projector.ProjectorConfig() # One can add multiple embeddings. embedding = config.embeddings.add() embedding.tensor_name = tf_data.name # Link this tensor to its metadata(Labels) file embedding.metadata_path = metadata # Saves a config file that TensorBoard will read during startup. projector.visualize_embeddings(tf.summary.FileWriter(LOG_DIR), config)

Now, open terminal and run the following command

tensorboard --logdir= "where the log files are stored"(without quotes) --port=6006

Result

Let's summarize few of our observations from the plot. In the above visualization, different colors from metadata(label) that are predicted using unsupervised model in this case K-Means++. We see four clusters being formed. However, our unsupervised learning model was trained with 3 clusters. We also see blue and orange cluster seem to share observations while the rest are share few observations. This shows that a good parameter tuning and careful study of observations we can identify/predict clusters that are separted nicely from one another.

Another important feature is visualizing data points and their associated images. With minimal effort a subject matter expert can carefully study clusters and deduct insights on model performance. Thus, this helps us really on visual aid along side popular unsupervised performance metrics to improve our model.

Now, its your turn to complete a hands-on activity ...Try-It-Now experiment:

Interactive activity usingTry-It-Now experiment 2:user-specified data.

You can also try to run similar analysis to the UK Biobank study above using your own dataset.

This will require you to provide a pair of ASCII text files that can be loaded from your computer.

The first file contains tab-delimitted (TSV) data including the predictor vectors (row=case * column=features).

The second file is an optional TSV file including metadata like labels for each case (row), if any.
Then you can run the same dimensionality reduction on your own data in 2D or 3D.

This link provides a direct
access to the User-Data-driven application ...
